The Induction Computer – Part 2

by Arto Juhani Heino (c) 2017

It looks like I am reinventing the wheel, minus valves and transistors, this work might even seem redundant to some of the techno-nerds. I assure you this is a step forward, there has been no time in the last 50 years that all those electronic enthusiasts have been able to simplify and create something without an official corporately designed IC package doing all your brain-work for you, leaving nothing for your own original imagination. I was very excited many years ago when many hobbyists made their own computers from discreet transistors and IC packages, while a few even made some relay ALUs.

While I thought of making my own CPU from relays but resisted, I first needed to create a new architecture that could incorporate an open 256 bit CPU and a Analog CPU  in one package, while still accessible enough to be built by hand. This was part of my goal, as the architecture had to be robust, to last 1000 years, the components were to be the built environment and the power to drive it should be available 24/7, sounds like a pipe dream of some mad scientist. I only dare to dream of its reality and decided to rediscover the simplicity and the basic technology to make it plausible. The idea of using stone to contain the complex logical matrix that can be accessed via simple interfaces is the final reality, the many steps to arrive at that outcome might outstrip my lifetime, still I will persist, as I cannot dismiss a vision that is clear and within the realms of possibility.

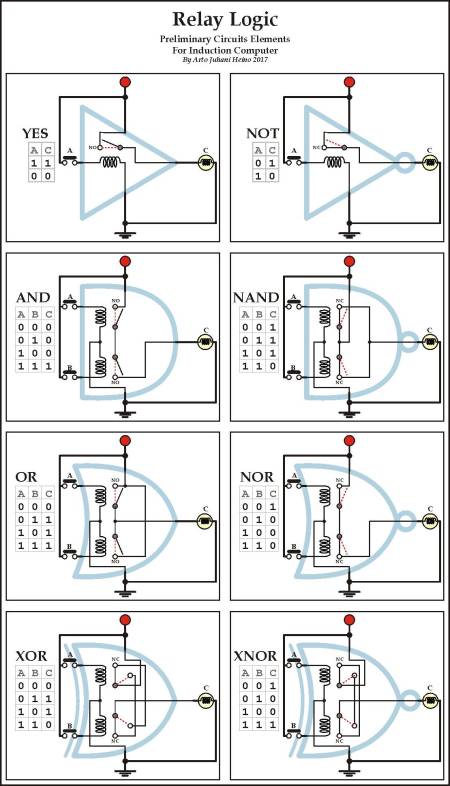

Enough of my machinations, here are some interesting and practically solved devolutions of known devices from my last posting. Here is a FlipFlop made from two relay NAND gates.

While the idea of a Operational Amplifier kept me awake for a night of two, I hope to emulate a 555 IC chip from my work here, just in time to compete a chapter in my Volume II.

This version should satisfy many of its Integrated Chip operations, still it is a crude and very fundamental design, useful to be expanded upon with a bit more work. I must repeat, I am not an electrical engineer and I have no degree from any University, I  am truly a ground up natural scientist, where my tenets of understanding come from a life time of artistic creativity with careful observations and practical applications. I hope those who are interested can learn much from my ideas. Regards Arto.
